Fɛn dilannenw ka paramɛtiriw
|
PARAMETER (PARAMETER) ye |
VOLTAGE DE FOURNIR |
KƆLƆSIW |
||
|
1.8V |
2.5V |
2.8/ 3.0/ 3.3V |
||
|
Frequency (Fɛrɛnkan) hakɛ (frequence range). |
10 ~ 52MHz ye |
-- |
||
|
Frequency muɲuli (fɛrɛnkan muɲuli). |
±2,0ppm ye |
Fɔlɔ tol. @+25 digili |
||
|
Frequency sabatili |
±0,5ppm ye; ±1,0ppm ye; ±1,5ppm ye; ±2,0ppm ye; ±2,5ppm ye |
aw ye sɛbɛn lajɛ min bɛ tabali jukɔrɔ |
||
|
Baarakɛcogo funteni hakɛ |
-20 ka se +70 degeli ma / -30 ka se +85 degeli ma / -40 ka se +85 degeli ma |
A faralen ɲɔgɔn kan ka taa sanfɛ sabatiliw la. |
||
|
Kɔrɔya san kɔnɔ |
±1,0ppm ye |
@+25 digili |
||
|
Bɔli waleyacogo |
Clip Sine Wave ye |
-- |
||
|
Bɔli doni |
10kΩ/10pF ye |
-- |
||
|
Nivo de voltage de sortie |
0,8Vp-p |
Minimum (a dɔgɔyalenba). |
||
|
Fasa mankan (misali la 19,2MHz) . |
-115dBc/Hz / -135dBc/Hz / -148dBc/Hz. Bamako, Mali |
@100Hz / 1kHz / 10kHz ye 100Hz ye |
||
|
Fasa jitter RMS |
<1ps |
12kHz A ka dɔgɔn walima a bɛ bɛn Fj ma A ka dɔgɔn walima a bɛ bɛn 20MHz ma |
||
|
Furakɛcogo kura |
1,5mA / 2,0mA ye |
@10kΩ/10pF (higher value >26MHz) ye. |
||
|
Nɔti:Frequency stability ye frequency deviation ye funteni hakɛ kan ka ɲɛsin +25℃ma |
||||
Fɛn dilannenw ka baarakɛcogo

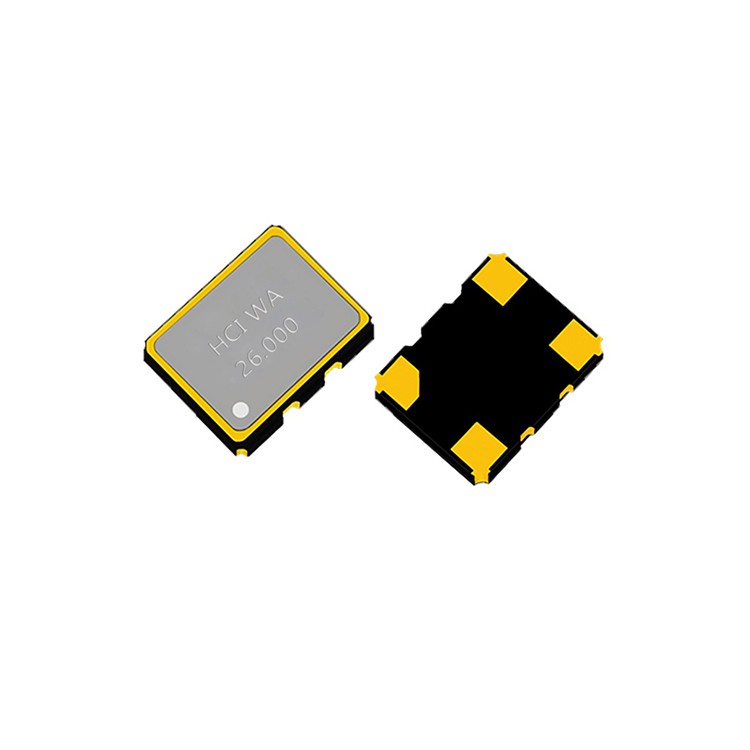

■ A bonya misɛnninw ye 3,2x2,5x0,9 ye ni solder 4 ye
■ A sabatili gɛlɛnw funteni hakɛ dantɛmɛnen kan
■ RoHS sariya labatoli, LEAD-FREE, HALOGEN-FREE ani REACH sariya labatoli
Aplikasiw (applications) minnu bɛ kɛ
- High-Precision VCTCXO Oscillator Sine Wave 3225 UC32S4 seriyali bɛ baara kɛ WiMAX / WLAN / Ethernet/ Telecommunication kɔnɔ.
Nafa minnu bɛ sɔrɔ fɛn dilannenw na
Tiɲɛni laban ni sabatili faralen ɲɔgɔn kan cogo dafalen na
A bɛ funteni sabatili danfaralen jira min ye ±0,5ppm ye ani kɔrɔya hakɛ min ka dɔgɔ kosɛbɛ ±1,0ppm san kɔnɔ, o bɛ waati taamasiyɛnw sabati tigitigi ani minnu bɛ se ka da u kan funteni hakɛ bɛɛ la ani fɛn dilannen ka ɲɛnamaya kɔnɔna bɛɛ la.
Baarakɛcogo ɲuman ni hakɛ jɛlenw faralen ɲɔgɔn kan
Foroko fitinin kɔnɔ min janya ye 3,2x2,5mm dɔrɔn ye, a bɛ ultra-low jitter of sɔrɔ<1ps and outstanding phase noise performance, providing a space-saving high-performance clock solution for high-speed communications and portable devices.
dipilomu
Programmable Sealed CMOS Oscillators 3225 CO32H4 seriyali bɛ RoHS sariya labato, LEAD-FREE, HALOGEN-FREE ani REACH la.
Ɲininkaliw
J1: Nin oscillateur in sabatilen don cogo di?
A: A sabatilen don kosɛbɛ, Suzhou Hangjing ka High-Precision VCTCXO Oscillator Sine Wave 3225 UC32S4 Series ni sugandiliw bɛ bɔ ±0,5ppm na ka se ±2,5ppm ma funteni kan ani ±1,0ppm dɔrɔn kɔrɔya san kɔnɔ.
J2: Yala a ka ɲi dilan misɛnninw ma, fanga-sensitive wa?
A: Ɔwɔ. A bonya fitinin 3,2x2,5mm bɛ ni jitter dɔgɔyalenba ye (<1ps) and runs on just 1.5mA–2.0mA of current. If you want recommendations for a specific frequency based on your processor or chipset model, please contact us now.
